Lehmatic adapter SW08

Lehmatic adapter for all attachments

No matter which brand of attachment you want to connect to your compact excavator: the Lehmatic adapter brings them together. Lehnhoff offers a suitable Lehmatic adapter for all current tools and attachments.

Front: coupling shaft for the coupling claws of the quickcoupler
Rear: highly precise lock plate with the two characteristic holes
Guaranteed secure connection

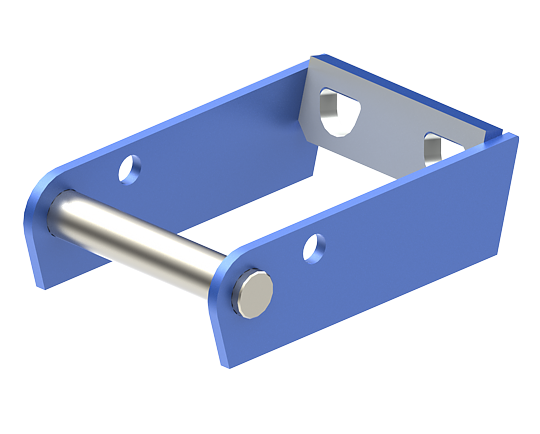

Adapterrahmen SW08

for backhoe
buckets and bucket conversion

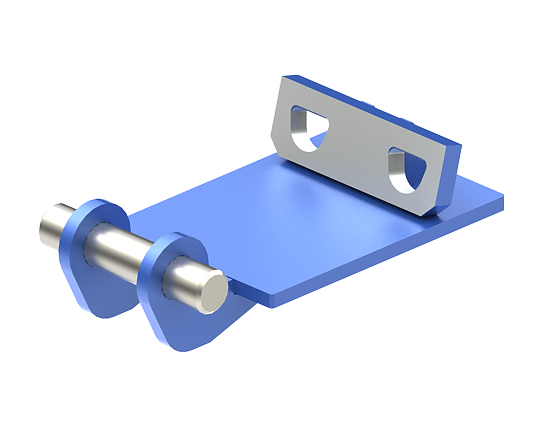

Adapter plate with internal suspension

for narrow bucket up to 300 mm wide

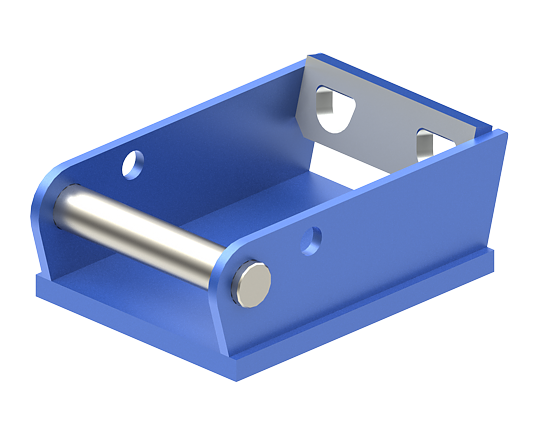

Weld adapter SW 08

for welding onto attachments

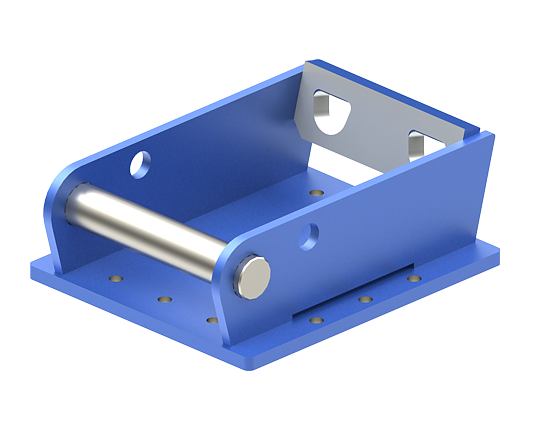

Screw adapter SW08

for demolition tools, such as hammers, etc

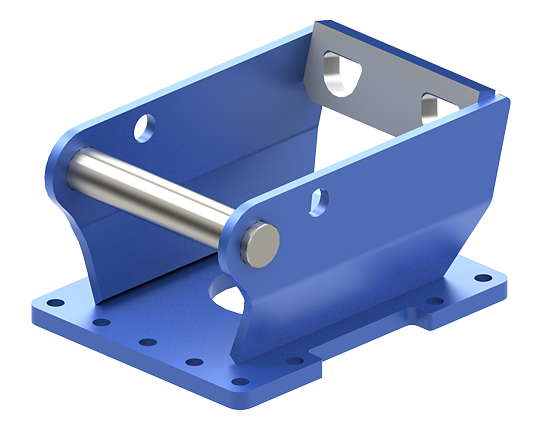

Screw adapter Flex SW08

for special hole patterns/hose laying

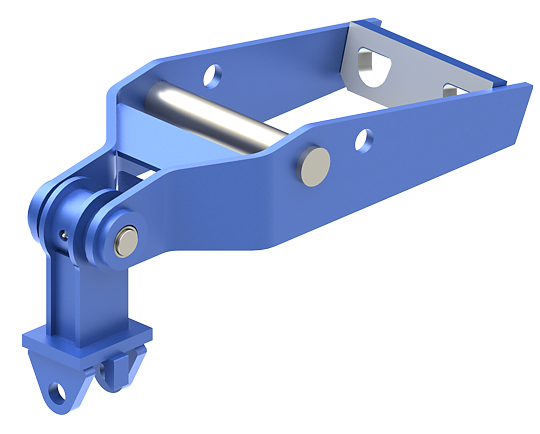

Grapple adapter SW08

to accommodate all sorts of grapples

Symlock SY 08, the adapter with added value

Simple conversion of the backhoe bucket into a shovel bucket

Using the Symlock adapter, you can turn a backhoe bucket into a shovel bucket in a flash and vice versa – by rotating the bucket by 180°. The characteristic lock plate and the coupling shaft on the adapter are replaced by two symmetrically arranged coupling shafts with flat surfaces for the lock plate and locking bolts of the quickcoupler. This enable both the conventional position in the adapter as well as a fit rotated by 180°

Backhoe bucket with Symlock adapter in normal backhoe use is simply rotated by 180° for shovel bucket use.

Shovel bucket application

All advantages of the Lehmatic quickcoupler system are retained
Ideal for limited range
for material loading or for filling in front of walls
when digging ditches
for obstacles

5-year warranty on clearance-free fit of the quickcoupler in the Symlock adapter. Only applies for the use of original Lehnhoff quickcoupler components.

perfect fit of quickcoupler and Symlock-Adapter

e. g. digging deep with the shovel bucket ...

... and loading it full in spite of an obstacle

Technical data Lehmatic/Symlock Adapter

Adapter frame	SW 08	SY 08
Excavator class	6 - 12 t	6 - 12 t
Length (mm)
Width (mm)
Weight approx. (kg)	30	30
suitable for quickcouplers	MS 08 / HS 08 / VL 80	MS 08 / HS 08 / VL 80
Coupling shaft diameter(s) Ø (mm)	60	60
