The hydraulical quickcoupler for compact excavators
With the hydraulical Lehmatic quickcoupler HS 08 for compact excavators you are able to change your attachments convenient, quick and safe from driver‘s cab. The HS 08 quickcoupler is locked hydrauically by a double-acting cylinder. The locking operation is carried out via a lockable push button or optional with the control panel Lehmatic Control. For maximum safety all HS-couplers can be equipped with the optional safety assistant system Lehmatic safety control (LSC)
HS 08
- Convenient, quick and safe locking from driver‘s cab
- Driver activates the control valve and unlocks/locks the quickcoupler at the touch of a button via lockable toggle switch
- The quickcoupler is always secure and locked playfree through permanent spring-force actuation
- A safety nonreturn valve and permanent pressurisation ensure always safe locking
- High functional safety due to sealed locking mechanism/hydraulics
- Optional Lehmatic Safety Control (LSC) safety assistant system
- Optional with load hook
-

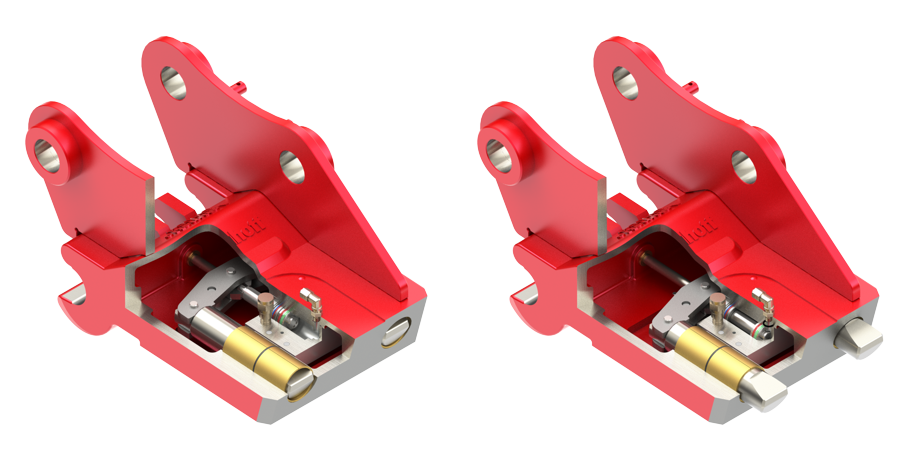

Optical locking indicator, visible from driver‘s cab, indicator pin extended
-
Unlocked - locking bolts retracted
-
Safely locked – hydraulic cylinder with integrated safety valve and constant pressurisation
-
Optical locking indicator, indicator pin retracted
Technical data HS 08
| Quickcoupler | HS 08 |
|---|---|
| Excavator class | 6 - 12 t |
| Length (mm) | 400 |
| Width (mm) | 290 |
| Weight approx. (kg) | 80 |
| Adapter | SW 08 |
| Coupling shaft Ø (mm) | 60 |
| Unlocking pressure min.(bar) | 160 |
| Load hook load capacity | 3 t / 5 t |
