EnglishMS 10-25
The mechanical quickcouplers for hydraulic excavators
With the mechanical Lehmatic quickcoupler MS 10-25 for hydraulic excavators you are able to change your attachments fast and safe. The quickcoupler is mounted quickly and is durable and reliable in function even in heavy duty operations. The locking is made by turning a socket wrench about 120°. The quickcoupler is then safely locked over deadpoint.
- Easy, quick and safe locking via manual socket wrench
- Long service life of the quickcoupler system through automatic adjustment in adapter
- High functional safety by locking via the deadpoint
- Long service life and low maintenance due to sealed locking mechanism
- Optionally with load hook
-
Easy, quick and safe locking via manual socket wrench
-

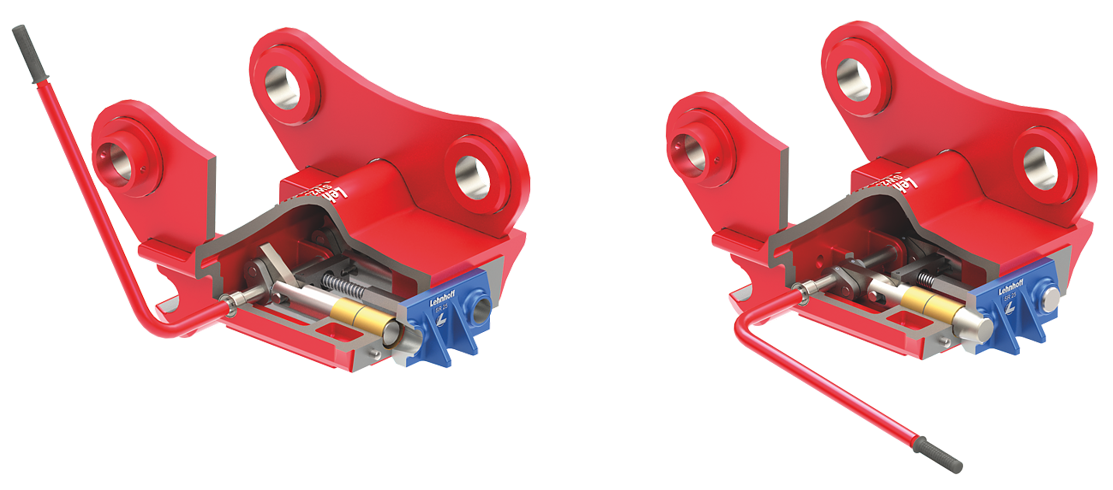

Unlocked - locking bolts retracted
-
Locking pins extended, quickcoupler safely locked over deadpoint
-
Socket wrench rotated by 120°
Technical data MS 10-25
| Quickcoupler | MS 10 | MS 21 | MS 25 |
|---|---|---|---|
| Excavator class | 10 - 19 t | 18 - 28 t | 26 - 40 t |
| Length (mm) | 520 | 545 | 545 |
| Width (mm) | 395 | 495 | 600 |
| Weight approx. (kg) | 170 | 270 | 320 |
| Adapter | SW 10 | SW 21/25 | SW 21/25 |
| Coupling shaft diameter Ø (mm) | 70 | 80 | 80 |
| Load hook load capacity | 8,0 t | 10 t | 18 t |
