EnglishAttachments for compact excavators
Sorting bucket
For separation of all kinds of rough and fine materials. CSL model for compact excavators with bucket base made of massive rectangular bars.
- Robust bucket construction with double-conical design
- Bucket base made of massive rectangular bars 30x20mm, bar spacing 60 mm
- Cutting edge made of Lehborit 5000 (500HB)
- Drop-forged Lehnhoff tooth system (CSL 5)
- ESCO Ultralok tooth system (CSL 10/ CSL12)
Technical data sorting bucket CSL
| CSL 5 | CSL 10 | CSL 12 | |
|---|---|---|---|
| Excavator class | 6 - 8 t | 8 - 10 t | 10 - 12 t |
| Cutting width | SAE / KG | SAE / KG | SAE / KG |
| 800 | 300 / 260 | ||
| 1000 | 460 / 295 | ||
| 1200 | 620 / 355 | ||
| Tooth system | 411F | U20S | U20S |
Cutting width (mm), Z = teeth, SAE = capacity (l), KG = weight (kg)
Grading bucket
ideal for use on rotators/tilt rotators
With an extensively contorted cutting edge, double-conical side walls and optimal trapeze design, the Lehnhoff profile buckets are ideal for levelling and digging work.
- Tapered edges
- Long flat bucket base and double-conical design
- Thus optimum penetration characteristics and fuel saving
- Efficient emptying
Technical data grading bucket CP
| CP 5 | CP 10 | |
|---|---|---|
| Excavator class | 6 - 8 t | 8 - 10 t |
| Cutting width | SAE / KG | SAE / KG |
| 1000 | 280 / 219 | |
| 1200 | 350 / 339 | |
| 1300 | 410 / 275 | |
| 1500 | 420 / 390 |
SAE = capacity (l), KG = weight (kg)

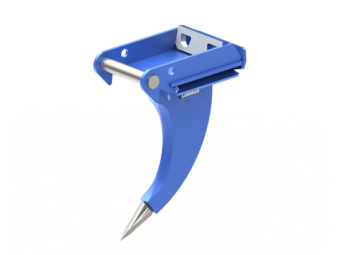

Bionic ripper tooth
The bionically optimised ripping teeth from Lehnhoff stand for efficiency and stability when tearing and loosening rock, stone and soils. With welded tooth tip. And with Lehmatic adapter. Ideal for:
- Loosening of hard or frozen grounds
- Demolition work
- Loosening of stone and rock
- Breaking up road surfaces and concrete slabs
- Clearing work
Technical data bionic ripper tooth RZ
| RZ 8 | |
|---|---|
| Excavator class | 6 - 10 t |
| Suspension | SW 08 |
| Tooth radius (mm) | 650 |
| Weight (kg) |

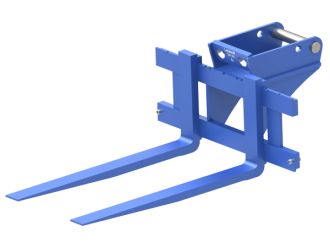

Pallet fork
Enables the handling of loads on common pallets with adjustable fork arms.
- For compact excavators with 24 t load capacity
- Lehmatic adapter SW08
Technical data pallet fork
| CPG 10 | |
|---|---|
| Excavator class | 6 - 10 t |
| Suspension | SW 08 |
| Width (mm) | 1100 |
| Fork arms (mm) | 1200x100x45 |
| Weight (kg) | 265 |
| Load capacity (t) | 2,4 |
Demolition and sorting grap
The Lehnhoff demolition and sorting grab are suitable for sorting, loading, and placing stones and for gripping wood. Featuring a very robust and compact design as well as large opening width and shell volume, and with impressive high clamping, rotation and holding forces.
- Rotation angle 360° continuous
- Robust design for long service life
- Easy to maintain: all lubrication points are accessible in one position
- Special shells are available on request
- Also available without the turning head (for rotators/tilt rotators)
- Optionally with Lehmatic or Variolock adapter
Technical data demolition and sorting grab
| CSG 10 | CSG 12 | |
|---|---|---|
| Excavater class | 6 - 10 t | 10 - 12 t |
| Opening dimensions (mm) | 1350 | 1750 |
| Shell width (mm) | 650 | 800 |
| Height without adapter (mm) | 975 | 1380 |
| Clamping force (kN) | 26 | 41 |
| Weight incl. adapter (kg) | 475 | 920 |
| Capacity (l) | 140 | 325 |
| Operating pressure (bar) | 320 | 320 |
| Operating pressure rotation (bar) | 120 | 140 |
| Oil flow (l/min) | 50 | 80 |
| Oil flow rotating (l/min) | 20 | 40 |
