Lehmatic adapters SW 10-25

This ensures that attachments of all makes fit

No matter which make of attachment you want to connect to your excavator: the Lehmatic adapter brings them together. Lehnhoff offers a suitable Lehmatic adapter for all current tools and attachments.

Front: coupling shaft for the coupling claws of the quickcoupler
Rear: highly precise forged lock plate with the two characteristic holes
Guaranteed secure connection

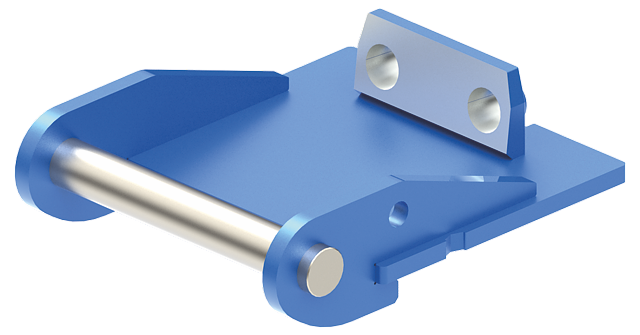

Adapter plate SW 10-25

for backhoe bucket and bucket conversion

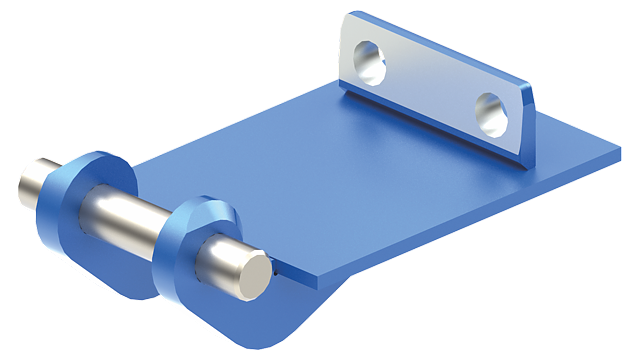

Adapter plate with internal suspension

for narrow buckets up to 400 mm wide

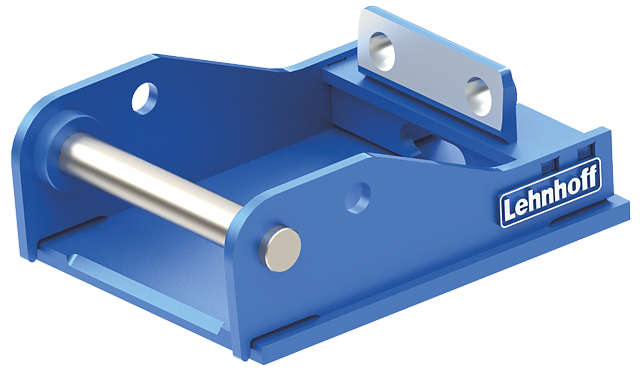

Weld adapter SW 10-25

for welding onto attachments

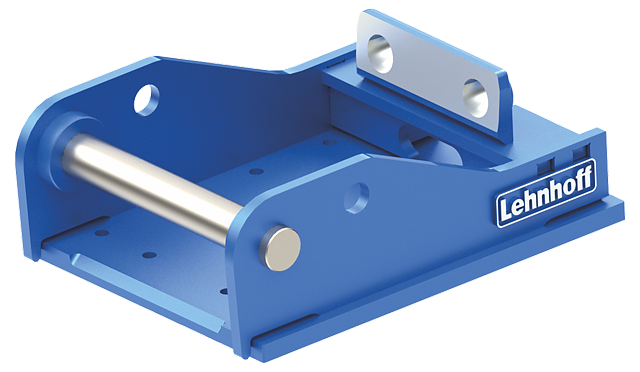

Screw adapter SW 10-25

for demolition tools, such as hammers, etc.

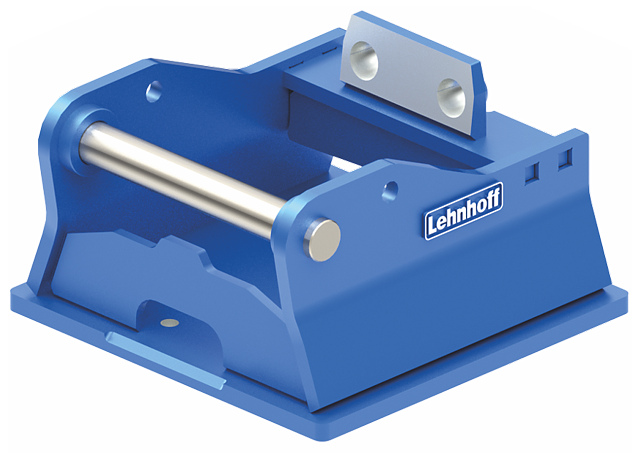

Screw adapter SW 10-25 Flex

for special hole patterns/hose laying

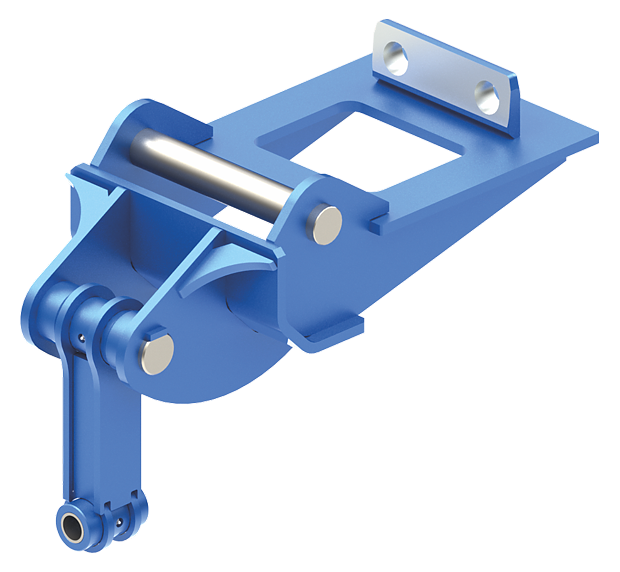

Grapple adapter SW 10-25

to accommodate all sorts of grapples

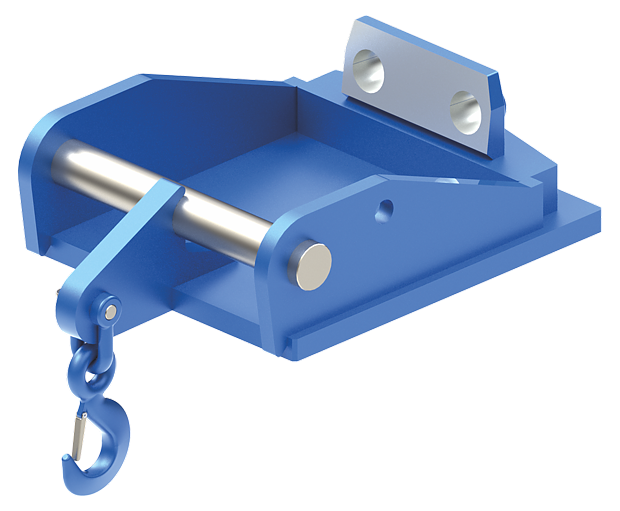

Special adapter SW 10-25

e.g. for load hooks

Adapter plate for existing backhoe bucket

Even existing backhoe buckets can be easily modified. To do this, the old suspension is simply removed and replaced by the Lehmatic adapter plate. If you do not wish to attach it yourself, the Lehnhoff factory service team is available to assist you with retrofitting the attachments. The adapter plates are mounted quickly, routinely, and reliably.

Quick and easy: modification of existing backhoe buckets to Lehmatic adapter

Backhoe bucket modification

Correct positioning of bucket using the Lehnhoff manual
Cutting-off the original excavator brackets
Preparing surface for welding
Welding of adapter plate using the Lehnhoff manual
Checking the correct position of the locking plate - correction of locking plate, if needed

Technical data Lehmatic adapters SW 10-25

Adapter	SW 10	SW 21/25
Excavator class	10 - 19 t	18 - 40 t
Length (mm)
Width (mm)
Weight approx. (kg)
suitable for quickcouplers	MS10 / HS10 / VL100	MS21/25 / HS21/25 / VL210/250
Coupling shaft diameter Ø (mm)	70	80
