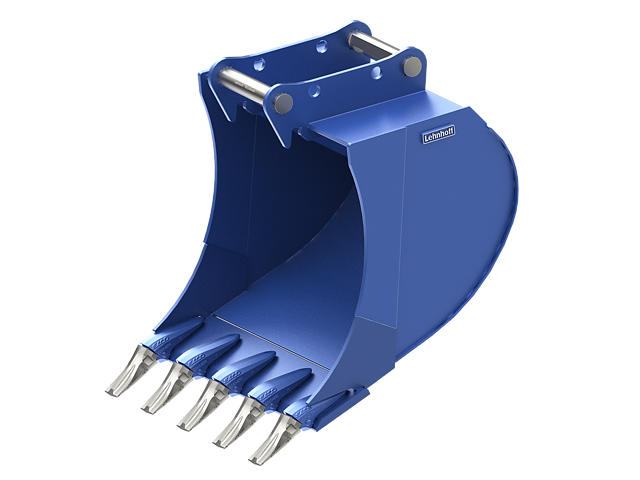

EnglishCTL backhoe bucket for compact excavators
Just like the large buckets from Lehnhoff, the CTL backhoe buckets for compact excavators meet the highest quality standards. With features like double-conical design and external overhanging bucket base they are also made for the toughest applications.
- Highest quality materials and unique weld quality for the highest efficiency and longevity
- Optimum filling and emptying properties ensure reduced fuel consumption
-
Optionally with Symlock or Lehmatic adapter
-

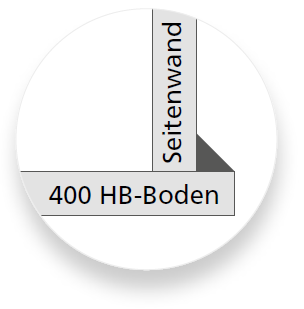

overhanging bucket base - protected weld seam
-
Robust bucket base made of 400HB steel
-
drop-forged , Lehnhoff tooth system,
from CTL10: ESCO Ultralok tooth system
-
Cutting edge made of Lehborit 5000 (500HB)
-
Side blade with wear protection made of 400HB steel
CTL features
- Good filling properties and easy emptying thanks to LH double-conical design
- Bucket base made of 400HB steel, overhanging with a protected welded seam
- Cutting edge made of Lehborit 5000 (500HB)
- Drop-forged Lehnhoff tooth system (CTL 5)
- ESCO Ultralok tooth system (CTL 10/ CTL12)
- Optionally with Lehmatic or Symlock adapter
- Incl. bucket transport bracket
Technica data CTL backhoe bucket
| CTL 5 | CTL 10 | CTL 12 | |
|---|---|---|---|
| Excavator class | 6 - 8 t | 8 - 10 t | 10 - 12 t |
| Cutting width | SAE / KG | SAE / KG | SAE / KG |
| 300 / 3 Z | 90 / 122 | 105 / 130 | 130 / 140 |
| 400 / 3 Z | 130 / 150 | 155 / 159 | 170 / 171 |
| 500 / 3-4 Z | 170 / 156 | 200 / 180 | 225 / 175 |
| 600 / 4 Z | 210 / 171 | 255 / 200 | 280 / 202 |
| 800 / 4-5 Z | 300 / 211 | 360 / 225 | 395 / 250 |
| 900 / 5 Z | 340 / 244 | 410 / 255 | 450 / 272 |
| 1000 / 5 Z | 380 / 246 | 460 / 270 | 510 / 280 |
| 1100 / 5 Z | 570 / 300 | ||
| 1200 / 6 Z | 620 / 367 | ||
| Tooth system | 411F | U20S | U20S |
Cutting width (mm), Z = teeth, SAE = capacity (l), KG = weight (kg)
