HS08V (Variolock VL 80)

Fully hydraulic quickcoupler for compact excavators

Each attachment safely in use, in just seconds
The fully hydraulic Variolock energy circuit coupling system makes changing all attachments easy, safe and quick. The driver can comfortably change all tools including the hydraulic connection at the press of a button from the cab, without having to leave the cab and without having to depend on other personnel.

Very economical thanks to time and cost savings

More effective working: tool change makes sense also with short work cycles
More safety and convenience for the driver
Cost reduction due to preservation of machine and attachments
Prevention of hose ruptures
Less contamination of the hydraulic system, environmentally friendly

- Sealing protects the valves from dirt while using non-hydraulic attachments

- 2 load hooks as standard

- Quickcoupler with integrated valve block (S-block)

- Valve block in the adapter of the attachment (A-block)

Locking process

When locking the quickcoupler with the adapter, the valves are opened automatically. The extremely short stroke of 0 - 3.5 mm allows a full flow of oil immediately. The quickcoupler is always safe and locked without backlash through permanent pressurisation.

S-block: valve block in quickcoupler

Flexibly and centrally stored on the underside in the quickcoupler
With five short stroke valves
Including leakage oil lines
Integrated hydraulic tension support ensures a solid hydraulic
connection between S-block and A-block

A-block: valve block in the attachment

Mounted in the attachment adapter
Short stroke valves are flush with the block surface and thus easy to maintain
Valves optimally adapted to the respective tool:
Two valves: e.g. tilt bucket, hammer
Three valves: e.g. drum cutter, rigid compactor
Four valves: e.g. rotatable grapple
Five valves: e.g. rotatable compactor

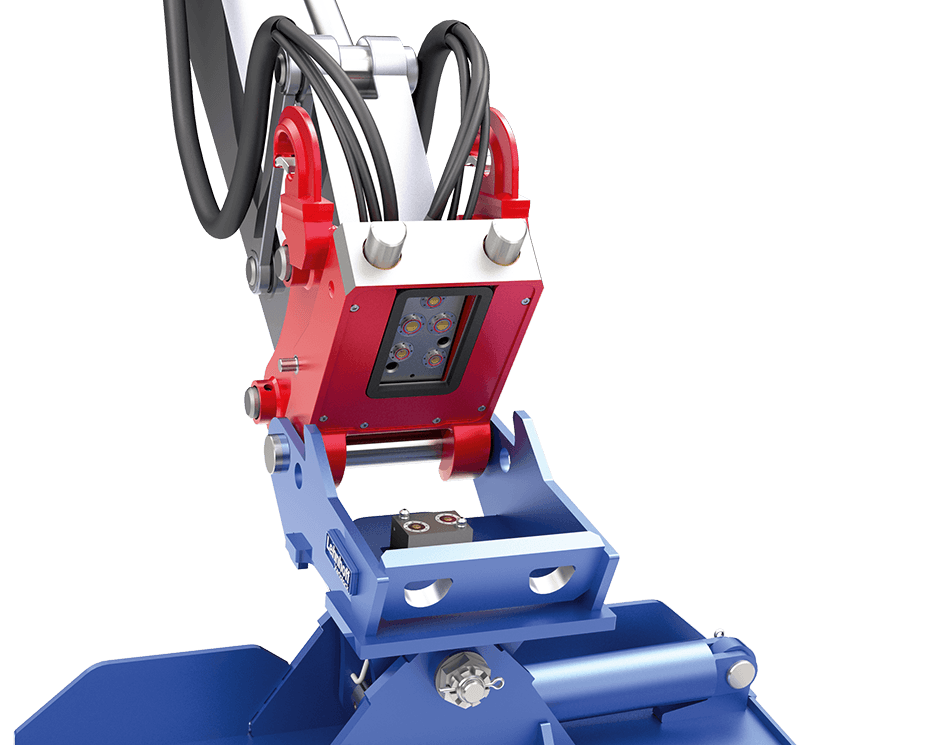

Tilt bucket:

2 valves

(3 dummies)

Sorting grab:

4 valves

(1 dummy)

Hydraulik hammer:

2 valves

(3 dummies)

Rotatable compactor:

5 valves

(no dummy)

Anbaufräse:

3 Ventile

(2 Dummies)

Backhoe bucket:

no valves

(only valve bloc protection)

Five short stroke valves enable all functions of all tools, including the leakage oil line

Technical data HS08V (Variolock VL 80)

Quickcoupler	HS08V (VL80)
Excavator class	6 - 12 t
Length (mm)	570
Width (mm)	335
Weight approx. (kg)	90
Compatible with adapter	SW 08
Coupling shaft Ø (mm)	60
Locking /unlocking pressure min. (bar)	160
Valves	3 x KV1, 2 x KV2
Flow KV1 (l/min)	110
Flow KV2 (l/min)	160
Load hooks load capacity	2 x 5 t
