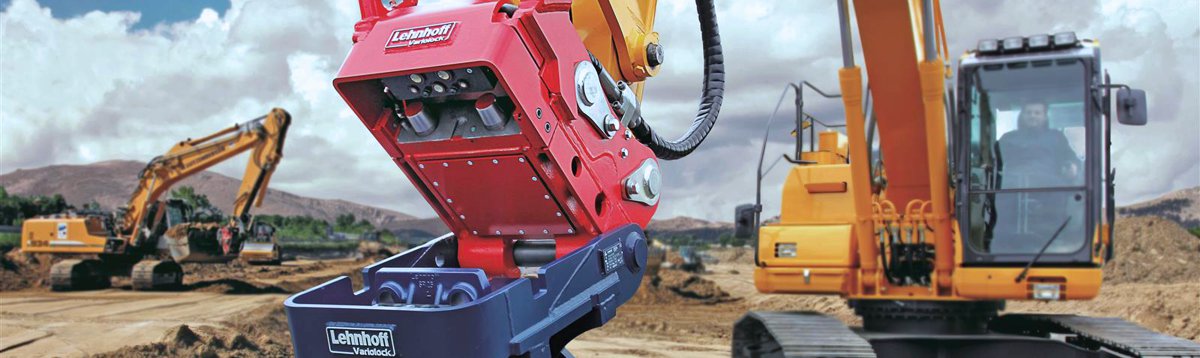

HS10V - HS25V (Variolock VL 100-250)

Fully hydraulic quickcoupler for hydraulic excavators

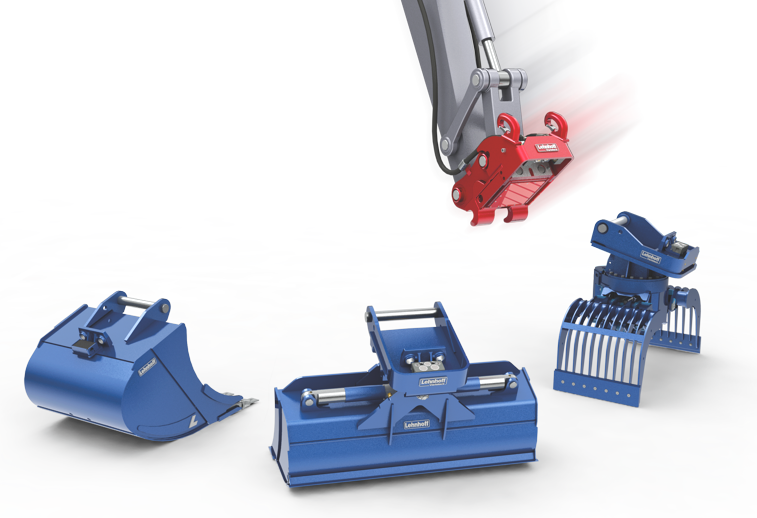

Each attachment safely in use, in just seconds
The fully hydraulic Variolock energy circuit coupling system makes changing all attachments easy, safe and quick. The driver can comfortably change all tools including the hydraulic connection at the press of a button from the cab, without having to leave the cab and without having to depend on other personnel.

Very economical thanks to time and cost savings

More effective working: tool change makes sense also with short work cycles
More safety and convenience for the driver
Cost reduction due to preservation of machine and attachments
Prevention of hose ruptures
Less contamination of the hydraulic system, environmentally friendly

- Optimised installation: hoses already installed up to SAE block flange

- 2 load hooks as standard

- Quickcoupler with integrated valve block (S- block)

- Valve block in the adapter of the attachment (A-block)

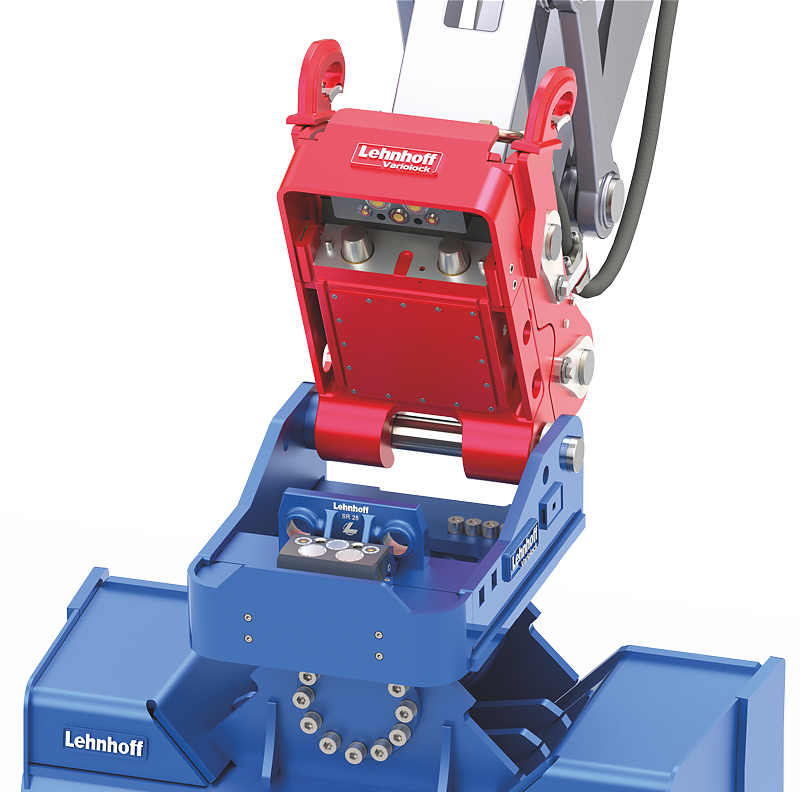

Locking process

When locking the quickcoupler and theattachment with the adapter, the valvesare opened mechanically.The extremely short stroke of 0 - 4.8 mmallows a full flow of oil immediately. The quickcoupler is always safe andlocked without backlash through permanent pressurisation.

S-Block: Ventilblock im Schnellwechsler

Flexibly and centrally stored on the underside in the quickcoupler
With five short stroke valves
Including leakage oil lines
Integrated hydraulic tension support ensures a solid hydraulic
connection between S-block and A-block

A-block: valve block in the attachment

Mounted in the attachment adapter
Short stroke valves are flush with the block surface and thus easy to maintain
Valves optimally adapted to the respective tool:
Two valves: e.g. tilt bucket, hammer
Three valves: e.g. drum cutter, rigid compactor
Four valves: e.g. rotatable grapple
Five valves: e.g. rotatable compactor

Tilt bucket:

2 valves

(3 dummies)

Sorting grab:

4 valves

(1 dummy)

Hydraulic hammer:

2 valves

(3 dummies)

Rotatable compactor:

5 valves

(no dummy)

Drum cutter:

3 valves

(2 dummies)

Backhoe bucket:

no valves

(only valve block protection)

Five short stroke valves enable all functions of all tools, including the leakage oil line

Technical data HS10V - HS25V (Variolock VL 100-250)

Quickcoupler	HS10V (VL100)	HS21V (VL210)	HS25V (VL250)
Excavator class	10 - 19 t	18 - 28 t	26 - 40 t
Length (mm)	520	545	545
Width (mm)	395	495	600
Weight approx. (kg)	220	350	550
Compatible with adapter	SW 10	SW 21/25	SW 21/25
Locking /unlocking pressure min. (bar)
Valves	3 x KV1, 2 x KV3	2 x KV1, 1 x KV3, 2 x KV4	2 x KV1, 1 x KV3, 2 x KV4
Load hooks load capacity	2 x 8 t	2 x 10 t	2 x 18 t
