The fully hydraulic quickcoupler for mini excavators
Each attachment safely in use, in just seconds
The fully hydraulic HS-V (Variolock) energy circuit coupling system makes changing all
attachments easy, safe and quick. The driver can comfortably change all tools including
the hydraulic connection at the press of a button from the cab, without having to leave
the cab and without having to depend on other personnel.
Very economical thanks to time and cost savings
- More effective working: tool change makes sense also with short work cycles
- More safety and convenience for the driver
- Cost reduction due to preservation of machine and attachments
- Prevention of hose ruptures
- Less contamination of the hydraulic system, environmentally friendly
-
Sealing protects the valves from dirt while using non-hydraulic attachments
-
2 load hook as standard
-

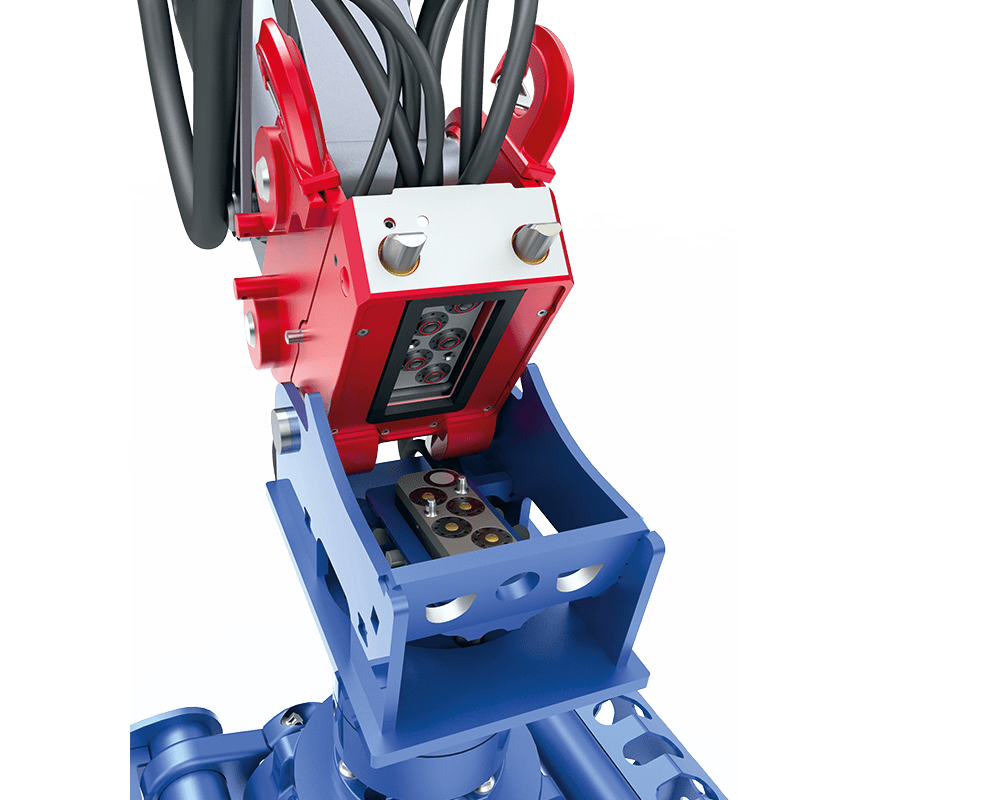

Quickcoupler with integrated valve block (S- block)
-
Valve block in the adapter of the attachment (A-block)
Locking process
When locking the quickcoupler with the adapter, the valves are opened automatically. The extremely short stroke of 0 - 3.5 mm allows a full flow of oil immediately. The quickcoupler is always safe and locked without backlash through permanent pressurisation.
S-block: valve block in quickcoupler
- Flexibly and centrally stored on the underside in the quickcoupler
- With five short stroke valves
- Including leakage oil lines
- Integrated hydraulic tension support ensures a solid hydraulic connection between
S-block and A-block
A-block: valve block in the attachment
- Mounted in the attachment adapter
- Short stroke valves are flush with the block surface and thus easy to maintain
- Valves optimally adapted to the respective tool:
Two valves: e.g. tilt bucket, hammer
Three valves: e.g. drum cutter, rigid compactor
Four valves: e.g. rotatable grapple
Five valves: e.g. rotatable compactor
Tilt bucket:
2 valves
Sorting grab:
4 valves
Hammer:
2 valves
Rotatable attachment compactor:
5 valves
Drum cutter:
3 valves
Backhoe bucket on
Powertilt-Variolock:
no valves
Five short stroke valves enable all functions of all tools, including the leakage oil line
Technical data HS03V (Variolock VL30)
| Quickcoupler | HS03V (VL30) |
|---|---|
| Excavator class | 1,5 - 6t |
| Length (mm) | 284 |
| Width (mm) | 200 |
| Weight approx. (kg) | 50 |
| Compatible with adapter | SW03 |
| Coupling shaft diameter Ø (mm) | 50 |
| Locking /unlocking pressure min. (bar) | 130 |
| Valves | 5 x KV1 |
| Flow KV1 (l/min) | 110 |
| Load hooks load capacity | 2x 3 t |
