EnglishHydro universal bucket HB RH/GH, HB RM/GM
Stable and robust, for long service life, even for tough applications: the allrounder for embankments and ditch digging work. The new Lehnhoff hydro universal bucket is available in two different shape and drive variants. The HB R with its bucket-shaped curved side wall is ideal for ditch-digging work. The HB G with its straight side jaw is well suited for precise embankment work.

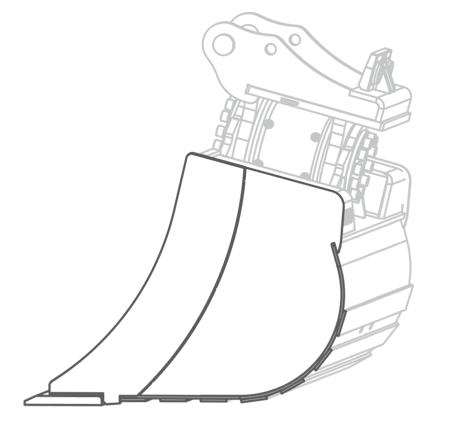

HB R
Bucket-shaped curved side walls

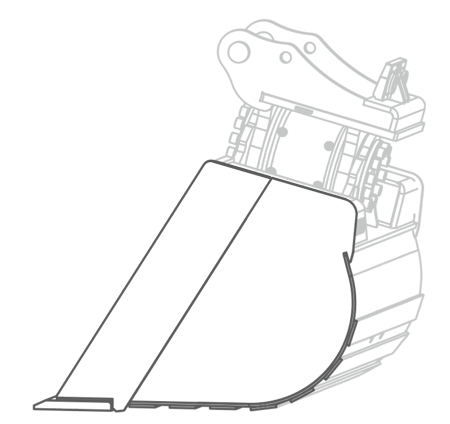

HB G
Straight side walls
Two different swivel drives

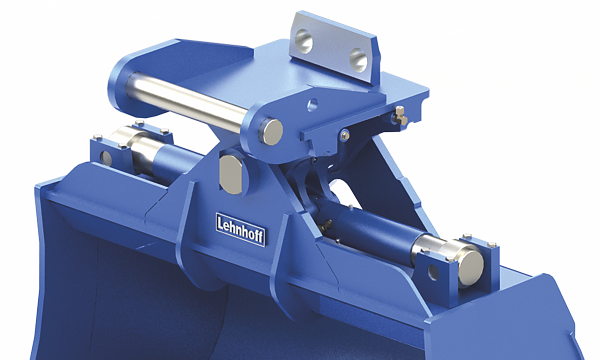

Swivel drive with hydraulic cylinders (H)
Robust, durable swivel head with two large hydraulic cylinders and piston rod guard, swivel angle 2 x 45°.

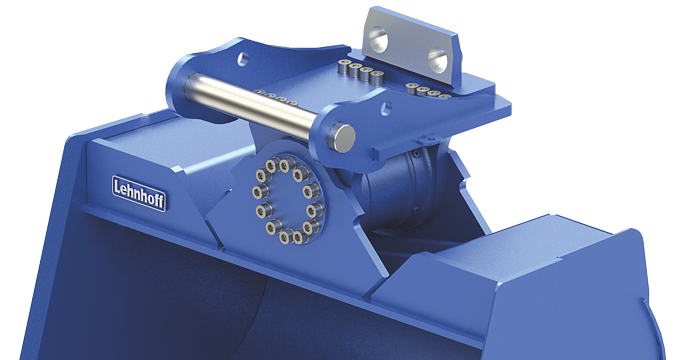

Swivel design with hydraulic rotating motor (M)
Extremely robust and low-maintenance drive with 2 x 45° swivel angle, which significantly reduces the build height with its own embedded rotating motor. In this way, optimised tear-out and break-out forces are achieved.
Rigid version
You can also get all ditch-cleaning buckets in a rigid design.
-
Optional: Wear strips as standard (HB 500) laterally on base, from size HB 25
-
Protection of the external welding seams thanks to protruding base
-
Base and side walls made of 400 HB steel, blade 250x30 mm made from Lehborit 5000 (500 HB)
